LXD860 Self-Propelled Thermoplastic Road Marking Machine

Update time：Oct-27-2020

LXD860 Self-Propelled Thermoplastic Road Marking Machine Featured Image

Short Description:

We are China ’s largest professional manufacturer of self-propelled thermoplastic road marking machines. The marking shoe of this machine is made of high-precision cast iron, which can make the lines orderliness, uniform thickness and more beautiful. The grounded knife of marking shoe can be applied to different kinds of roads.


video

3 Levels of Thermo to ft your budget

Specification of this Self-Propelled Thermoplastic Road Marking Machine Manufacturer



Specification
It is equipped with infinitely variable speeds walking system,which improve work efficiency greatly.It is suitable to work on the mountain road.what calls for special attention is that it should be worked with thermoplastic(hot melt) preheater.

The marking shoe of this machine is made of high-precision cast iron,

which can make the lines orderliness,uniform thickness and more beautiful.

The grounded knife of marking shoe can be applied to different kinds of road.

Glass beads automatic spreader equipped with buffer device of speed regulation

which has advantage of high efficiency,high quality,easy to operate and convenient for maintenance.
Engine 5.5HP Honda diesel engine
Paint container double layer stainless steel,equipped with inserted dismountable manumotive stirring device,the container is removable & interchangeable for quick color changes
Paint container capacity 120kg
Glass beads container capacity 10kg
Glass beads container Automatic spreader
Glass beads dispenser 100/150/200/250/300/400/450mm(optional)
Marking equipment high-precision integrated marking shoe,screeding type,standard configuration: 150mm
Working speed More than 1500 m/hr
Driving method Self-propelled
Line marking width 50/100/150/200/250/300/400/450mm(optional)
Line thickness 1.0-3.0mm(adjustable)
Maximum gradeability 15°
wheel High temperature resistance soft rubber,rear wheel equipped with localiser to make the machine walk along the straight line
Heating temperature 180~210℃
Heating Mode Liquefied petroleum gas heating
Gas tank 15kg
Size and weight 1360×850×1070mm 235kg

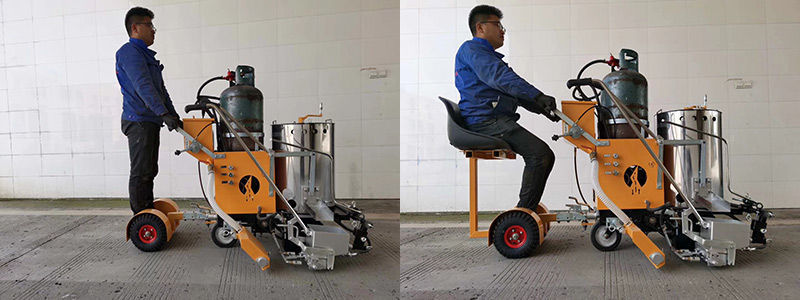

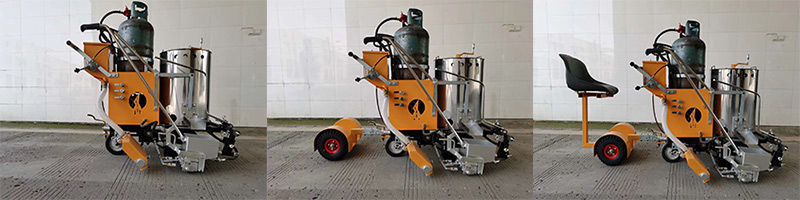

Pictures of this China Self-Propelled Thermoplastic Road Marking Machine



Our Pictures of this Self-Propelled Thermoplastic Road Marking Machine Factory

Looking forward to your inquiry for this Self-Propelled Thermoplastic Road Marking Machine Manufacturer
