LXD1200T / 1200B Hydraulic Double Cylinder Thermoplastic Preheater( Fuel:Diesel or LPG)

Update time：Oct-27-2020

LXD1200T / 1200B Hydraulic Double Cylinder Thermoplastic Preheater( Fuel:Diesel or LPG) Featured Image

Short Description:

We are China’s largest professional manufacturer and factory of the hydraulic double cylinder thermoplastic preheater. It is updated from theLPGthermoplasticpreheater, which has the advantage of convenience, economical, and highly efficient. especially suitable for the area with strong wind.


video

3 Levels of Thermo to ft your budget

Specification of this Hydraulic Double Cylinder Thermoplastic Preheater Manufacturer ( Fuel:Diesel or LPG)



Specification
it is updated from theLPGthermoplasticpreheater,which has the advantage of convenience,economical and high efficient.especially suitable for the area with strong wind.
Engine 15PS electric strat water-cooled diesel engine(LXD1200B: 16PS electric start air-cooled diesel engine)
Stirring system A hydraulic stirring system with a protective device can stir clockwise or anti-clockwise.
Paint tank capacity 600KG*2
Paint tank LXD1200T: Made of Boiler iron(LXD1200B: Made of special stainless steel )
Heating mode LPG(gas tank suggest 50KG) or Diesel, Dual-purpose type energy-efficient burner
Hydraulic oil tank 70L
Diesel tank 60L
Thermometer Each container is equipped with a thermometerwith heating resistance and shock resistance.
Operation Control The manual dual control valves respectively controltwo stirrers in the two cylinders.
Ventilating exhaust system Suction-type chimneys at the top of the cylinder
Discharge Outlet Lockable discharge trough and the close intermeshing type discharge system.
Heating temperature 0~300℃
Heat preservation double layer heat insulating material is fixed betweenthe inner container and the outer layer
Structure Frame structure, Integrative welded structure with high strength,heating resistance and oxidation resistance.
Size and Weight 1980*1610*1650mm 1100kg

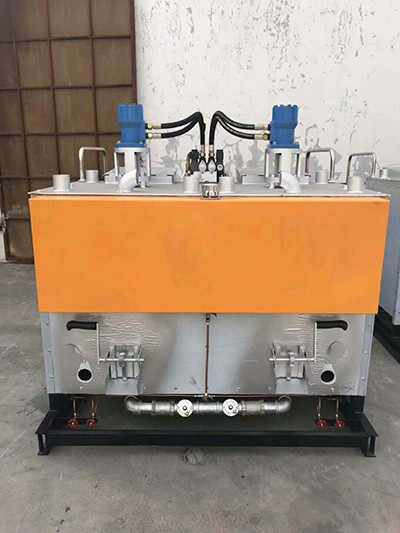

Pictures of this China Hydraulic Double Cylinder Thermoplastic Preheater( Fuel:Diesel or LPG)



Our Pictures of this Hydraulic Double Cylinder Thermoplastic Preheater Factory ( Fuel:Diesel or LPG)

Looking forward to your inquiry for this Hydraulic Double Cylinder Thermoplastic Preheater Manufacturer ( Fuel:Diesel or LPG)
