LXD-6L Hand Push High Pressure Airless Cold Paint Road Marking Machine

Update time:Oct-27-2020

Short Description:

We are China’s largest professional manufacturer and factory of hand push high pressure airless cold paint road marking machines. It is a special equipment for normal temperature paint construction. It is suitable for roads, highway, parking lot, airport, station. It can mark a straight line, dotted line, curve, zebra crossing, arrows, etc.


3 Levels of Thermo to ft your budget

Specification of this Hand Push High Pressure Airless Cold Paint Road Marking Machine Manufacturer



Specification
It is special equipment to normal temperature paint construction.

It is suitable for roads, highway, parking lot,airport, station. It can mark a straight line, dotted line, curve, zebra crossing, arrows, etc.

It is the spray equipment with high pressure,equal discharge and airless.

It use gasoline engine to drive single plunger pump to work,which can generate high pressure inside the machine.

The lines are common in thickness and angles are clear.

Because of the direction bar in the spraying gun, the line can be adjusted to certain width conveniently.

Engine 5.5HP gasoline engine
Work pressure 10-18Mpa
Max Flow 6L/min
Spraying width 50-300mm(single gun)
Spraying thickness 0.2-0.6mm
Size 1180×860×1000mm
Net weight 145kg

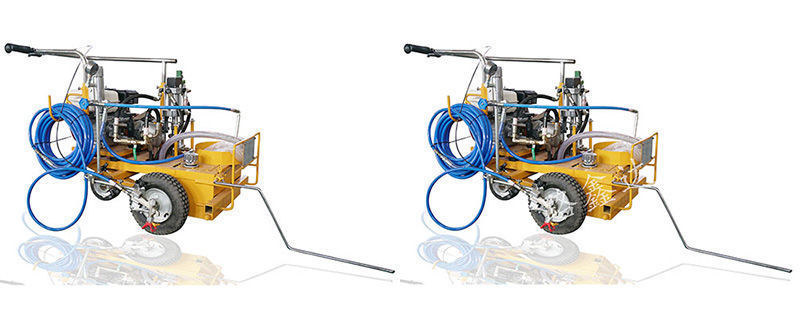

Pictures of this China Hand Push High Pressure Airless Cold Paint Road Marking Machine

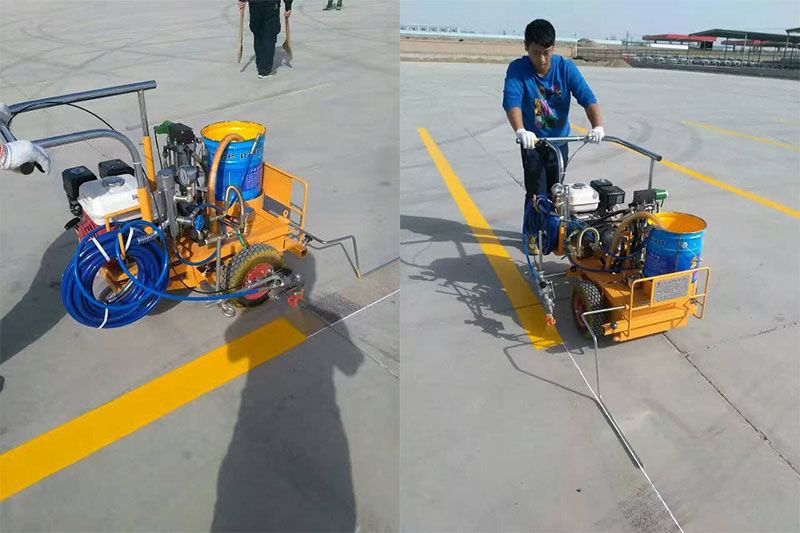

Our Pictures of this Hand Push High Pressure Airless Cold Paint Road Marking Machine Factory

Looking forward to your inquiry for this Hand Push High Pressure Airless Cold Paint Road Marking Machine Manufacturer
