High definition Machine For Thermoplastic Road Marking - LXD168 Driving Type Multi-functional Thermoplastic(convex) Road Marking Machine – Luxinda
Update time:Jan-08-2016
3 Levels of Thermo to ft your budget

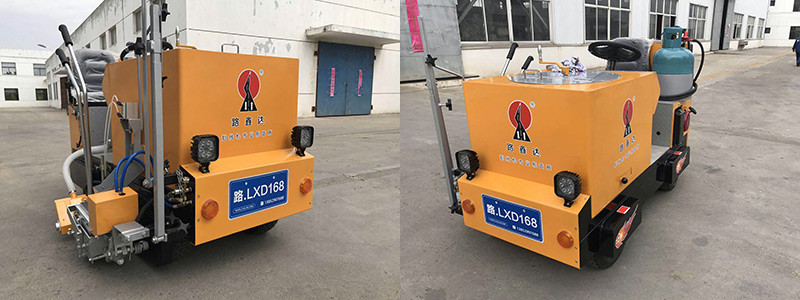

LXD168 driving type multi-functional thermoplastic(convex) road marking machine is Practical and multifunctional equipment, it has a high level of automation, high safety coefficient, it can help reduce labour intensity, improve the efficiency of construction. According to customers’ requirements,the machine can be applied to Hot melt spraying, Hot melt extrusion, hot melt vibrating and Hot-melt scraping etc. by just replace some parts.
LXD168 driving type multi-functional thermoplastic(convex) road marking machine Technical Specification
1 Engine:Honda GX270(LPG)
2 heat method:LPG
3 Vehicle Control System:CPU computer board imported from Siemens
4 Work pattern:dual mode(flat line and rib line)
5 driving system:LPG power,hydraulic drive,infinitely variable speeds
6 compressor:imported air compressor,
7 working pressure:pressure of blast pump: 0.4—0.6kg
8 paint tank capacity :0.1413m³(can accommodate about 225kg paint)
9 beads box capacity:20kg
10 working speed:0—15km/h
11 maximum gradeability:40°
12 rib line height:0-10mm
13 line width:50-450mm(optional)
14 vehicle wheel:2 front wheel and 2rear-wheel,Duralon material,15×6.00—6NHS
15 lamp:LED Lighting lamp,caution light,turn light,control panel display lamp
16 Size:1900mm×1220mm×1300mm(not include pointer)
17 pointer length:2m(extension-type)
18 weight:570kg
