Hand Push Road Marking Machine For Cold Plastic-Spotline

Update time：Oct-27-2020

Hand Push Road Marking Machine For Cold Plastic-Spotline Featured Image

Short Description:

We are China's largest professional manufacturer and factory of ……


video

3 Levels of Thermo to ft your budget

Specification of this Hand Push Cold Plastic Road Marking Machine Manufacturer

Apply for MMA(98:2) cold plastic spot line



Item Cold plastic road marking machine for spot line（MMA 98：2）
Engine Honda GX160 gasoline engine 5.5HP
gasoline tank capacity 2.9L
Electronic system 24V，Battery:5 Ah 20AR
Compressor gas displacement 0.21Nm³./min
Working air pressure 0.8PA
Solidify monitoring system Import from Germany，EGE Electronic flow controller
Drive method hydraulic driving system
Walking speed 14km/min
Maximum gradeability 15°
Motor flow 80ml
Paint tank capacity About 100kg
hardening agent capacity About 1.25kg
cleaning agent capacity About 0.012m³
Mixed system 98：2，fluid with hardening agent pump
Auxiliary equipment Electronic jumper control
Glass beads dispenser 1:16,by gravity
Line width 375px(4:5),500px(5:6 or 6:6),1000px(10:11) available
Wheel Front wheel：pneumatic tyre 4.00×8 4PRrearwheel：Solid rubber wheel (d = 200 mm)
Size and Weight About 342kg ;1400mm*1200mm*1300mm（not include pointer）

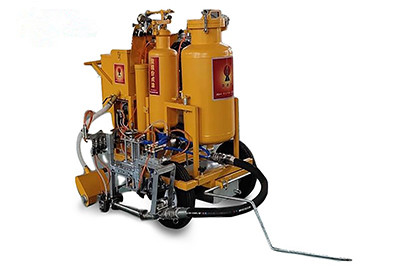

Pictures of this China Hand Push Cold Plastic Road Marking Machine

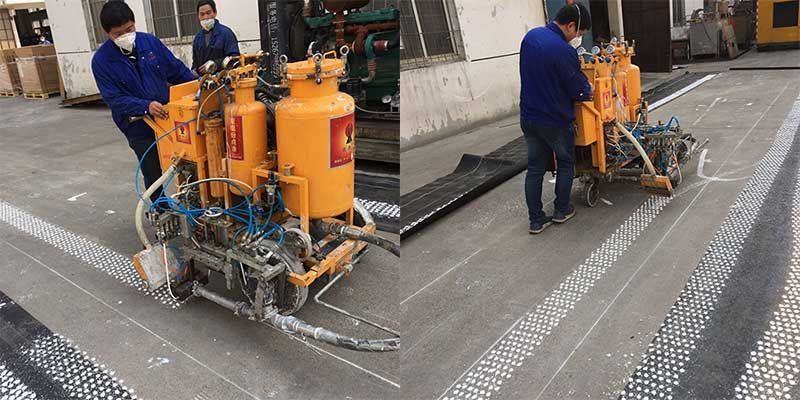

Our Pictures of this Hand Push Cold Plastic Road Marking Machine Factory

Looking forward to your inquiry for this Hand Push Cold Plastic Road Marking Machine Manufacturer
